Unlock Bios Password L380 20m6 supervisior password

[skawa1992]

L380 20m6 supervisior password
i am got a tip to flash EC chip to remove password but i can not identify it on motherboard.

Any other way ?

my bios file include here

thanks alot



[Support Staff no.1]

there is no other way
just try to find the EC chip on the board and reprogram it



[skawa1992]

okey im got it. bios here is not sop8 sop6 et is NPCE288 chip. I have no programmer to make it.

Somethink like this will work ? https://www.aliexpress.com/item/1005002246687319.html
or

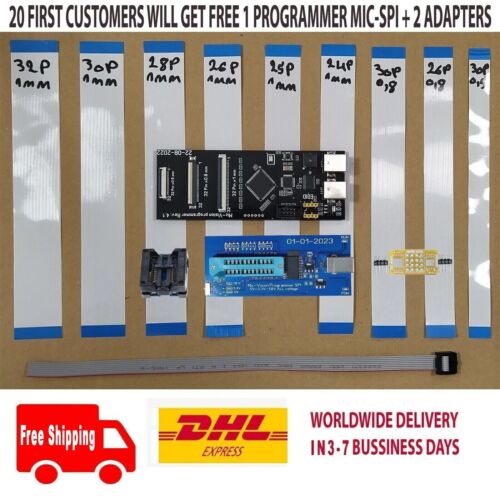

Original ! And stable Mic IO Programmer ITE,ENE, Nuvoton new ver 4.1 SMD | eBay

You can only program the ITE, ENE, Nuvoton film cable from the keyboard socket. NUVOTON NPCE288 NPCE388 series. Original - Genuine. Fast and easy programming . 1 x 30 Pin 0.8 mm cable. 1 x 24 Pin 1mm cable.

www.ebay.com

Or must be somethink like this:

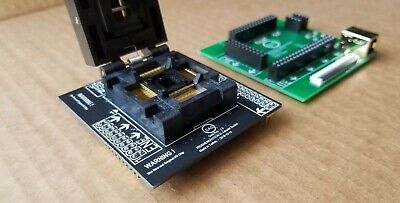

ENE,ITE,Nuvoton External IO EC Programming Adapter (For SAS and Vertyanov V3,V2) | eBay

KB9012QF, KB9010/9012/9016/9022, NPCE288, NPCE388 SAS, Vertyanov JIG V3, V2external ec adapter. To use this card, you need an IO programming device.Vertyanov V3, V2 - SAS V3, V2 Supported. 1 x External EC Programming Board.

www.ebay.com



[Support Staff no.1]

yes it might work
give it a try



[user10018]

what generation is the processor?



[user6389]

after flash bios send Hardware id i will unlock it
